Takisawa Taiwan

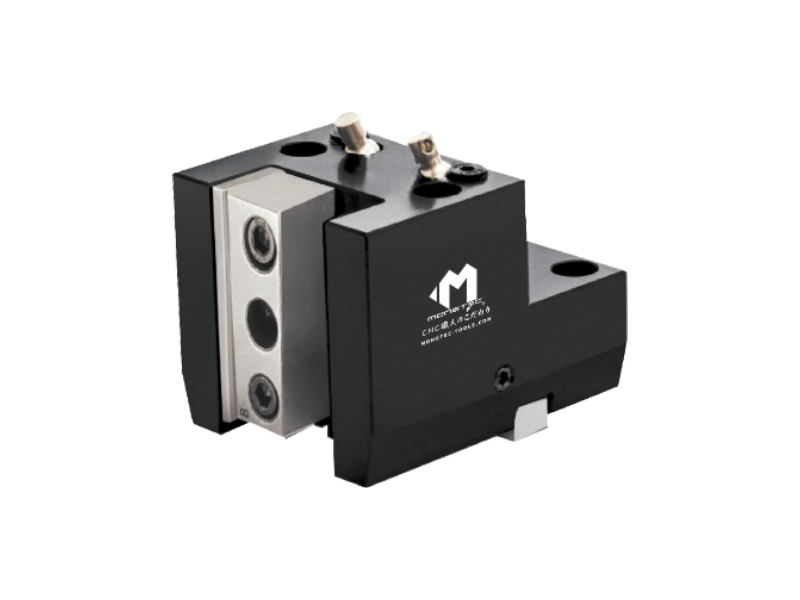

Takisawa Taiwan OD Static Toolholders
Product Introduction
Manufactured from high-grade alloy steel and integrated with a comprehensive heat treatment process, this main body delivers ultimate clamping rigidity. Tailor-made for high-precision positioning requirements, it ensures long-term stability and exceptional vibration-damping performance during both OD rough and finish machining processes.
• High-Rigidity Monoblock Structure
The optimized main body design withstands immense radial cutting forces and effectively absorbs vibrations during heavy-duty cutting. This protects and extends tool life while significantly improving the surface finish of the workpiece.
• Precision-Ground Contact Surfaces
All contact surfaces between the tool holder base and the turret are precision-ground to guarantee exceptionally high repeatability. This substantially reduces tool offset compensation time and enhances overall machining efficiency.
• Optimized Internal Cooling System
Equipped with a high-efficiency coolant delivery system that directs cutting fluid precisely onto the cutting edge. It effectively suppresses thermal deformation, assists in rapid chip evacuation, and ensures consistent quality during high-torque continuous machining.
• Wear and Corrosion-Resistant Treatment
The surface undergoes a special chemical treatment for superior wear and corrosion resistance. Even under prolonged exposure to cutting fluid environments, it maintains the long-term accuracy and service life of the turret interface.
Product Description
Product trial model
- EX-3.../ 5.../ 7.../ 9...
- EX/NEX-508, 510, 908, 910
- EX-1500, 2000 YT/YS
- FX-600
- FX-800
- FX-1500 (BMT45)
- LA-150, 200 M
- LA-250, 300 M/Y
- LA-250 YS T12
- LA-250 YS/YT T15
- LA-250 YS II T15 (BMT65)
- LA-350, 450 M/Y
- LA-350,450 M/Y (BMT75)
- LS-800 M/Y
- LS-1000M
- LX-2500, 3000M/Y
- LX-2500, 3000M/Y (BMT65)
- MX-800
- NEX-108, 110 M/Y
- NEX-110Y (BMT65)
- NEX-315, 715
- NT-2500 M
- NX-2000 M/MS/Y/YS T12
- NX-2500 T12
- NX-2500 T12 (BMT65)
- NX-2500 T15
- NX-2500 T15 (BMT65)
- UX-2000 (BMT55)
- VTL-450 M
- VTL-750, 760 M
- VTL-950, 1100 M
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
