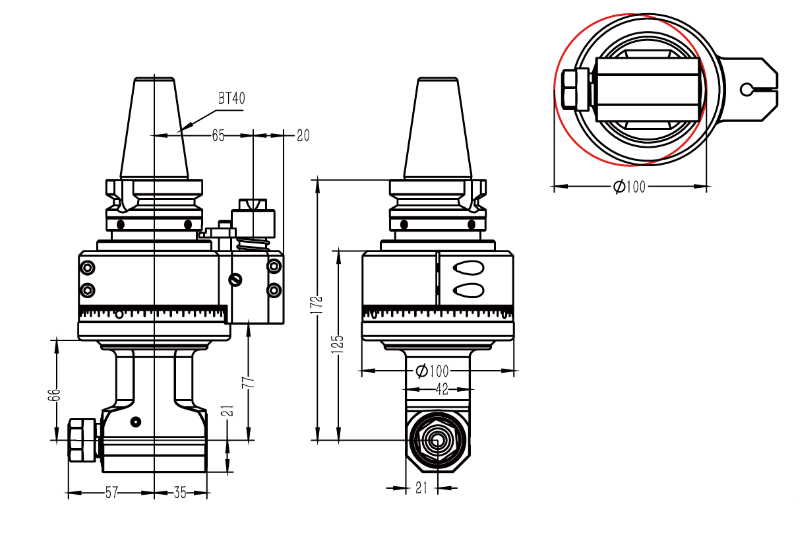

BT40QER16Q66

Product Introduction

High-Rigidity Angle Heads: Engineered for Efficiency and Multi-Axis Processing
Our Angle Heads are strategically designed to maximize production efficiency and expand the capabilities of 3-axis machines to multi-axis processing.

● High-Rigidity Housing: QT500-7 Ductile Iron
The housing is crafted from QT500-7 ductile iron, subjected to aging treatment and precision machining. This material provides superior vibration damping, high rigidity, and an extended service life. It features a minimum through-bore of ∅100mm.

● Stable Transmission System: High-Grade Drive Shaft
The main drive shaft is made of premium special alloy steel, processed with rigorous heat treatment and finished with fine grinding to achieve exceptional transmission stability.

● Premium Components: Gears & Bearings
Equipped with high-quality imported gears and bearings, our angle heads guarantee high torque transmission while maintaining ultra-low noise levels during operation.

● Versatile Interface & Compatibility
Input and output configurations are highly flexible and not limited to standard BT or ER interfaces. They allow for seamless integration with various precision machines for applications including milling, drilling, tapping, and grinding.
