Shrink Fit Chuck

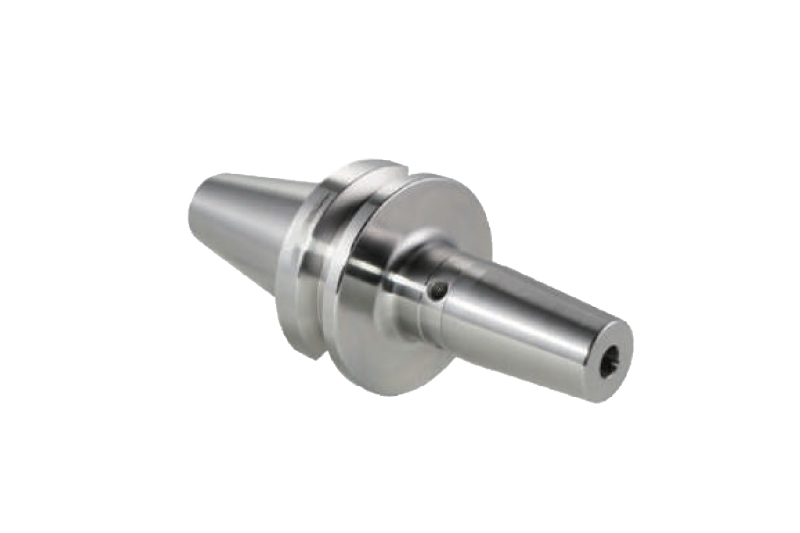

BT50 Shrink Fit Tool Holders
Product Introduction
• Ultimate Concentricity (T.I.R < 0.003mm):The monoblock geometric construction eliminates tolerances from multi-component stacking, ensuring the tool's rotation center is perfectly aligned with the spindle.
• Powerful and Uniform Clamping Force:The 360° full-circumference shrink-fit clamping provides rigidity far superior to traditional collets, significantly enhancing overall cutting stability.
• Excellent Dynamic Balance:The symmetrical design—free of nuts or slots—minimizes centrifugal vibration during high-speed rotation, protecting the machine spindle and extending its service life.
• Slender Interference Advantage:Featuring thin wall thickness at the front end and multiple taper options, the holder easily accesses narrow, deep cavities for machining while avoiding workpiece interference.
Product Description
Product trial model
| Size | d | D | D1 | L | L2 | L1 | N | G |
|---|---|---|---|---|---|---|---|---|
| BT50QSF03Q100 | 3 | 15 | 20 | 100 | 62 | - | - | - |
| BT50QSF04Q100 | 4 | 15 | 15 | 100 | 62 | - | - | - |
| BT50QSF05Q100 | 5 | 15 | 20 | 100 | 62 | - | - | - |
| BT50QSF06Q100 | 6 | 21 | 27 | 100 | 62 | 36 | 10 | M5 |
| BT50QSF08Q100 | 8 | 21 | 27 | 100 | 62 | 36 | 10 | M6 |
| BT50QSF10Q100 | 10 | 24 | 30.5 | 100 | 62 | 42 | 10 | M8x1 |
| BT50QSF12Q100 | 12 | 24 | 30.5 | 100 | 62 | 47 | 10 | M10x1 |
| BT50QSF14Q100 | 14 | 27 | 34 | 100 | 62 | 47 | 10 | M10x1 |
| BT50QSF16Q100 | 16 | 27 | 34 | 100 | 62 | 50 | 10 | M12x1 |
| BT50QSF18Q100 | 18 | 33 | 40 | 100 | 62 | 50 | 10 | M12x1 |
| BT50QSF20Q100 | 20 | 33 | 40 | 100 | 62 | 52 | 10 | M16x1 |
| BT50QSF03Q120 | 3 | 15 | 20 | 120 | 82 | - | - | - |
| BT50QSF04Q120 | 4 | 15 | 20 | 120 | 82 | - | - | - |
| BT50QSF05Q120 | 5 | 15 | 20 | 120 | 82 | - | - | - |
| BT50QSF06Q120 | 6 | 21 | 27 | 120 | 82 | 36 | 10 | 10 |
| BT50QSF08Q120 | 8 | 21 | 27 | 120 | 82 | 36 | 10 | M6 |
| BT50QSF10Q120 | 10 | 24 | 32 | 120 | 82 | 42 | 10 | M8x1 |
| BT50QSF12Q120 | 12 | 24 | 32 | 120 | 82 | 47 | 10 | M10x1 |
| BT50QSF14Q120 | 14 | 27 | 34 | 120 | 82 | 47 | 10 | M10x1 |
| BT50QSF16Q120 | 16 | 27 | 34 | 120 | 82 | 50 | 10 | M12x1 |
| BT50QSF18Q120 | 18 | 33 | 42 | 120 | 82 | 50 | 10 | M12x1 |
| BT50QSF20Q120 | 20 | 33 | 42 | 120 | 82 | 52 | 10 | M16x1 |
| BT50QSF25Q120 | 25 | 44 | 53 | 120 | 82 | 58 | 10 | M16x1 |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
