Shrink Fit Chuck

HSK100 Shrink Fit Tool Holders

Product Introduction

• Ultimate Concentricity (T.I.R < 0.003mm):The monoblock geometric construction eliminates tolerances caused by multi-component stacking, ensuring the tool's rotation center is perfectly aligned with the spindle.

• Powerful and Uniform Clamping Force:The 360° full-circumference shrink-fit clamping provides rigidity far superior to traditional collets, significantly enhancing overall cutting stability.

• Excellent Dynamic Balance:The symmetrical design—free of nuts or slots—minimizes centrifugal vibration during high-speed rotation, protecting the machine spindle and extending its service life.

• Slender Interference Advantage:With a slim wall thickness at the front end and multiple taper options, the holder easily accesses narrow, deep cavities while avoiding interference with the workpiece.

Product Description

Product trial model

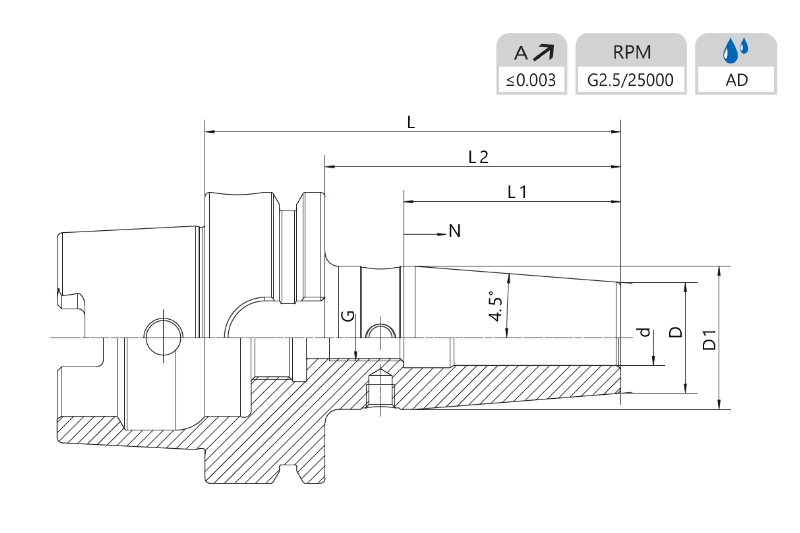

Size	d	D	D1	L	L2	L1	N	G
HSK100AQSF06Q120	6	21	27	120	91	36	10	M5
HSK100AQSF08Q120	8	21	27	120	91	36	10	M6
HSK100AQSF10Q120	10	24	32	120	91	42	10	M8x1
HSK100AQSF12Q120	12	24	32	120	91	47	10	M10x1
HSK100AQSF14Q120	14	27	34	120	91	47	10	M10x1
HSK100AQSF16Q120	16	27	34	120	91	50	10	M12x1
HSK100AQSF18Q120	18	33	42	120	91	50	10	M12x1
HSK100AQSF20Q120	20	33	42	120	91	52	10	M16x1
HSK100AQSF25Q120	25	44	53	120	91	58	10	M16x1
HSK100AQSF06Q160	6	21	32	160	131	36	10	M5
HSK100AQSF08Q160	8	21	32	160	131	36	10	M6
HSK100AQSF10Q160	10	24	34	160	131	42	10	M8x1
HSK100AQSF12Q160	12	24	34	160	131	47	10	M10x1
HSK100AQSF14Q160	14	27	42	160	131	47	10	M10x1
HSK100AQSF16Q160	16	27	42	160	131	50	10	M12x1
HSK100AQSF18Q160	18	33	50.5	160	131	50	10	M12x1
HSK100AQSF20Q160	20	33	50.5	160	131	52	10	M16x1
HSK100AQSF25Q160	25	44	60	160	131	58	10	M16x1
HSK100AQSF32Q160	32	44	60	160	131	62	10	M16x1
HSK100AQSF06Q200	6	21	32	200	171	36	10	M5
HSK100AQSF08Q200	8	21	32	200	171	36	10	M6
HSK100AQSF10Q200	10	24	34	200	171	42	10	M8x1
HSK100AQSF12Q200	12	24	34	200	171	47	10	M10x1
HSK100AQSF14Q200	14	27	42	200	171	47	10	M10x1
HSK100AQSF16Q200	16	27	42	200	171	50	10	M12x1
HSK100AQSF18Q200	18	33	51	200	171	50	10	M12x1
HSK100AQSF20Q200	20	33	51	200	171	52	10	M16x1
HSK100AQSF25Q200	25	44	60	200	171	58	10	M16x1
HSK100AQSF32Q200	32	44	60	200	171	62	10	M16x1
HSK100AQSF06Q250	6	21	32	250	221	36	10	M5
HSK100AQSF08Q250	8	21	32	250	221	36	10	M6
HSK100AQSF10Q250	10	24	34	250	221	42	10	M8x1
HSK100AQSF12Q250	12	24	34	250	221	47	10	M10x1
HSK100AQSF14Q250	14	27	42	250	221	47	10	M10x1
HSK100AQSF16Q250	16	27	42	250	221	50	10	M12x1
HSK100AQSF18Q250	18	33	51	250	221	50	10	M12x1
HSK100AQSF20Q250	20	33	51	250	221	52	10	M16x1
HSK100AQSF25Q250	25	44	60	250	221	58	10	M16x1
HSK100AQSF32Q250	32	44	60	250	221	62	10	M16x1
HSK100AQSF06Q300	6	21	32	300	271	36	10	M5
HSK100AQSF08Q300	8	21	32	300	271	36	10	M6
HSK100AQSF10Q300	10	24	34	300	271	42	10	M8x1
HSK100AQSF12Q300	12	24	34	300	271	47	10	M10x1
HSK100AQSF14Q300	14	27	42	300	271	47	10	M10x1
HSK100AQSF16Q300	16	27	42	300	271	50	10	M12x1
HSK100AQSF18Q300	18	33	51	300	271	50	10	M12x1
HSK100AQSF20Q300	20	33	51	300	271	52	10	M16x1
HSK100AQSF25Q300	25	44	60	300	271	58	10	M16x1
HSK100AQSF32Q300	32	44	60	300	271	62	10	M16x1
