Hydraulic Tool Holder
HSK63 Hydraulic Tool Holders
Product Introduction
• Superior Vibration Damping:The internal hydraulic oil chamber effectively absorbs micro-vibrations during the cutting process, protecting the tool's cutting edge, significantly extending tool life, and enhancing workpiece surface finish.
• Micron-Level Concentricity (T.I.R < 0.003mm):Uniform hydraulic expansion ensures the tool and holder centerlines are perfectly aligned, drastically reducing radial run-out caused by eccentricity.
• Ultra-Simplified Tool Change Process:No shrink-fit heating machines or specialized tools are required; a single hex wrench is all it takes to complete clamping quickly at the machine side, significantly reducing downtime during tool changes.
• Stable Clamping Force:Maintains robust and secure clamping force even during high-speed operation, ensuring safety and consistency throughout the machining process.
Product Description
Product trial model

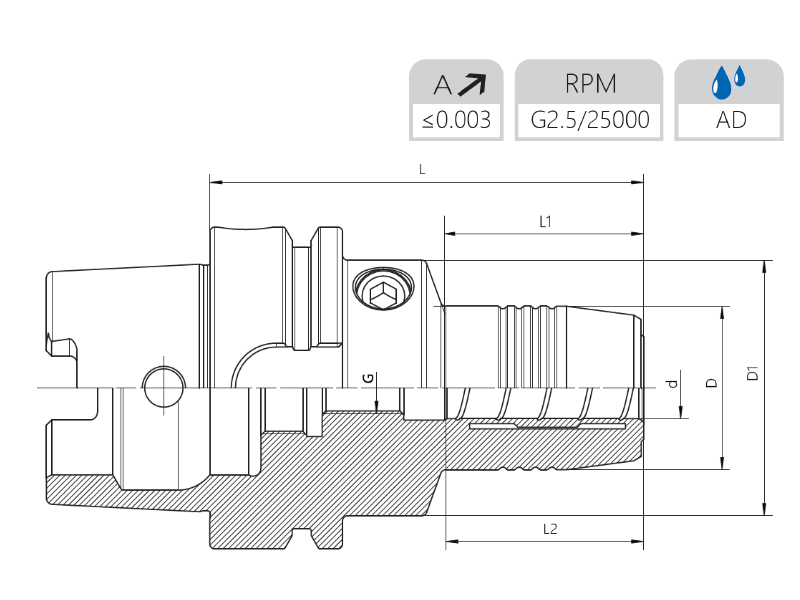

| Size | d | D | D1 | L | L1 | L2 | G |
|---|---|---|---|---|---|---|---|
| HSK63AQHY06Q70 | 6 | 26 | 50 | 70 | 23 | 30 | M5 |
| HSK63AQHY08Q70 | 8 | 28 | 50 | 70 | 23.5 | 30 | M6 |
| HSK63AQHY10Q80 | 10 | 30 | 50 | 80 | 34 | 34 | M8x1 |
| HSK63AQHY12Q85 | 12 | 32 | 50 | 85 | 39 | 39 | M10×1 |
| HSK63AQHY14Q85 | 14 | 34 | 50 | 90 | 40 | 39 | M10×1 |
| HSK63AQHY16Q90 | 16 | 38 | 50 | 90 | 45.5 | 42 | M10×1 |
| HSK63AQHY18Q90 | 18 | 40 | 50 | 90 | 46 | 42 | M10×1 |
| HSK63AQHY20Q90 | 20 | 42 | 50 | 90 | 46 | 44 | M10×1 |
| HSK63AQHY25Q120 | 25 | 57 | 62 | 120 | 58 | 50 | M16×1 |
| HSK63AQHY32Q125 | 32 | 64 | - | 125 | - | 54 | M16×1 |
| HSK63AQHY06Q150 | 6 | 26 | 50 | 150 | 103 | 30 | M5 |
| HSK63AQHY08Q150 | 8 | 28 | 50 | 150 | 103 | 30 | M6 |
| HSK63AQHY10Q150 | 10 | 30 | 50 | 150 | 104 | 34 | M8×1 |
| HSK63AQHY12Q150 | 12 | 32 | 50 | 150 | 104 | 39 | M10×1 |
| HSK63AQHY14Q150 | 14 | 34 | 50 | 150 | 105 | 39 | M10×1 |
| HSK63AQHY16Q150 | 16 | 38 | 50 | 150 | 105 | 42 | M12×1 |
| HSK63AQHY18Q150 | 18 | 40 | 50 | 150 | 106 | 42 | M12×1 |
| HSK63AQHY20Q150 | 20 | 42 | 50 | 150 | 106 | 44 | M16×1 |
| HSK63AQHY25Q150 | 25 | 57 | 62 | 150 | 88 | 50 | M16x1 |
| HSK63AQHY32Q150 | 32 | 64 | 70 | 150 | 88 | 54 | M16x1 |
| HSK63AQHY06Q200 | 6 | 26 | 50 | 200 | 103.5 | 30 | M5 |
| HSK63AQHY08Q200 | 8 | 28 | 50 | 200 | 104 | 30 | M6 |
| HSK63AQHY10Q200 | 10 | 30 | 50 | 200 | 104.5 | 34 | M8x1 |
| HSK63AQHY12Q200 | 12 | 32 | 50 | 200 | 104.5 | 39 | M10x1 |
| HSK63AQHY14Q200 | 14 | 34 | 50 | 200 | 105.5 | 42 | M12×1 |
| HSK63AQHY16Q200 | 16 | 38 | 50 | 200 | 105.5 | 42 | M12x1 |
| HSK63AQHY18Q200 | 18 | 40 | 50 | 200 | 105.5 | 42 | M12x1 |
| HSK63AQHY20Q200 | 20 | 42 | 50 | 200 | 106 | 44 | M16x1 |
| HSK63AQHY25Q200 | 25 | 57 | 62 | 200 | 152 | 50 | M16x1 |
| HSK63AQHY32Q200 | 32 | 64 | 70 | 200 | 152 | 54 | M16x1 |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
