Hydraulic Tool Holder
BT50 Hydraulic Tool Holders
Product Introduction
• Superior Vibration Damping:The internal hydraulic oil chamber effectively absorbs micro-vibrations during the cutting process, protecting the cutting edge, significantly extending tool life, and enhancing the workpiece surface finish.
• Micron-Level Concentricity (T.I.R < 0.003mm):Uniform hydraulic expansion ensures perfect alignment between the tool and the holder’s centerline, significantly reducing radial runout caused by eccentricity.
• Minimalist Tool Change Process:No shrink-fit machines or special equipment are required; a single hex wrench allows for rapid clamping directly at the machine, significantly reducing downtime for tool changes.
• Stable Clamping Force:Maintains a secure and steady clamping force even under high-speed operations, ensuring both safety and consistency throughout the machining process.
Product Description
Product trial model

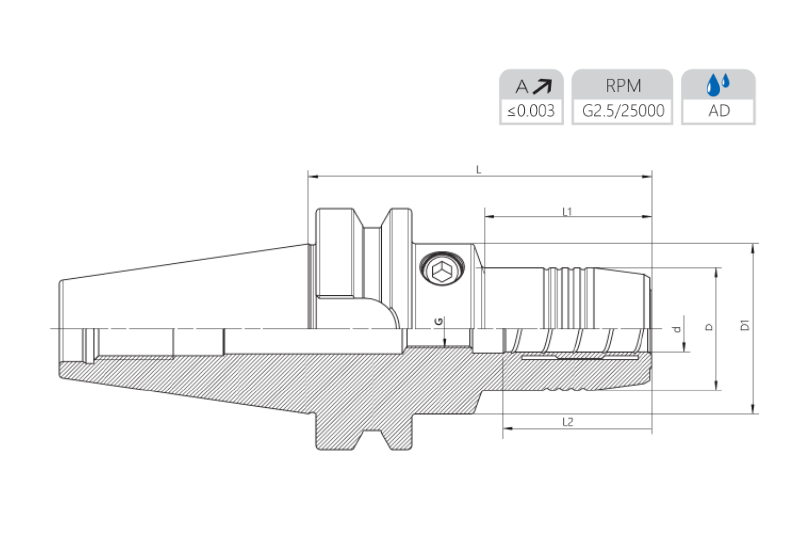

| Size | d | D | D1 | L | L1 | L2 | G |
|---|---|---|---|---|---|---|---|
| BT50QHY06Q90 | 6 | 26 | 44.5 | 90 | 34 | 30 | M5 |
| BT50QHY08Q90 | 8 | 28 | 44.5 | 90 | 34 | 30 | M6 |
| BT50QHY10Q90 | 10 | 30 | 44.5 | 90 | 34 | 34 | M8×1 |
| BT50QHY12Q90 | 12 | 32 | 44.5 | 90 | 34 | 39 | M10×1 |
| BT50QHY14Q90 | 14 | 34 | 44.5 | 90 | 34 | 39 | M10×1 |
| BT50QHY16Q90 | 16 | 38 | 50 | 90 | 34 | 42 | M12×1 |
| BT50QHY18Q90 | 18 | 40 | 50 | 90 | 34 | 42 | M12×1 |
| BT50QHY20Q90 | 20 | 42 | 50 | 90 | 34 | 44 | M16×1 |
| BT50QHY25Q105 | 25 | 57 | 70 | 105 | 46 | 50 | M16×1 |
| BT50QHY32Q115 | 32 | 64 | 70 | 115 | 57.5 | 54 | M16×1 |
| BT50QHY06Q120 | 6 | 26 | 44.5 | 120 | 34 | 30 | M5 |
| BT50QHY08Q120 | 8 | 28 | 44.5 | 120 | 34 | 30 | M6 |
| BT50QHY10Q120 | 10 | 30 | 44.5 | 120 | 34 | 34 | M8×1 |
| BT50QHY12Q120 | 12 | 32 | 44.5 | 120 | 34 | 39 | M10×1 |
| BT50QHY14Q120 | 14 | 34 | 44.5 | 120 | 34 | 39 | M10×1 |
| BT50QHY16Q120 | 16 | 38 | 50 | 120 | 34 | 42 | M12×1 |
| BT50QHY18Q120 | 18 | 40 | 50 | 120 | 34 | 42 | M12×1 |
| BT50QHY20Q120 | 20 | 42 | 50 | 120 | 34 | 44 | M16×1 |
| BT50QHY06Q150 | 6 | 26 | 44.5 | 150 | 34 | 30 | M5 |
| BT50QHY08Q150 | 8 | 28 | 44.5 | 150 | 34 | 30 | M6 |
| BT50QHY10Q150 | 10 | 30 | 44.5 | 150 | 34 | 34 | M8×1 |
| BT50QHY12Q150 | 12 | 32 | 44.5 | 150 | 34 | 39 | M10×1 |
| BT50QHY14Q150 | 14 | 34 | 44.5 | 150 | 34 | 39 | M10×1 |
| BT50QHY16Q150 | 16 | 38 | 50 | 150 | 34 | 42 | M12×1 |
| BT50QHY18Q150 | 18 | 40 | 50 | 150 | 34 | 42 | M12×1 |
| BT50QHY20Q150 | 20 | 42 | 50 | 150 | 34 | 44 | M16×1 |
| BT50QHY25Q150 | 25 | 57 | 70 | 150 | 91 | 50 | M16×1 |
| BT50QHY32Q150 | 32 | 64 | 70 | 150 | 93 | 54 | M16×1 |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
