BT & BBT Tool Holders
BT&BBT BT50 ER Collet Tool Holders with UM Nut
Product Introduction
• Superior Heavy-Duty Cutting Rigidity:Designed specifically for high-horsepower spindles, the BT50 taper provides a massive contact area capable of withstanding high-load and high-torque cutting, demonstrating rock-solid machining stability.
• BBT Dual-Contact Technology (Optional):Supports BBT dual-contact specifications (simultaneous taper and face contact), effectively eliminating Z-axis draw-in during high-speed rotation and significantly enhancing radial rigidity during cutting.
• High-Precision Dynamic Balancing:Given the larger rotational mass of the BT50, all units are precision-balanced to G2.5 / 15,000 RPM (or higher) to significantly reduce spindle load and prevent resonance.
• Precision Carburizing Heat Treatment:Manufactured from selected alloy steel with deep carburizing treatment, achieving ultimate surface hardness and wear resistance while maintaining high core toughness to ensure no deformation under high-intensity operations.
Product Description
Product trial model

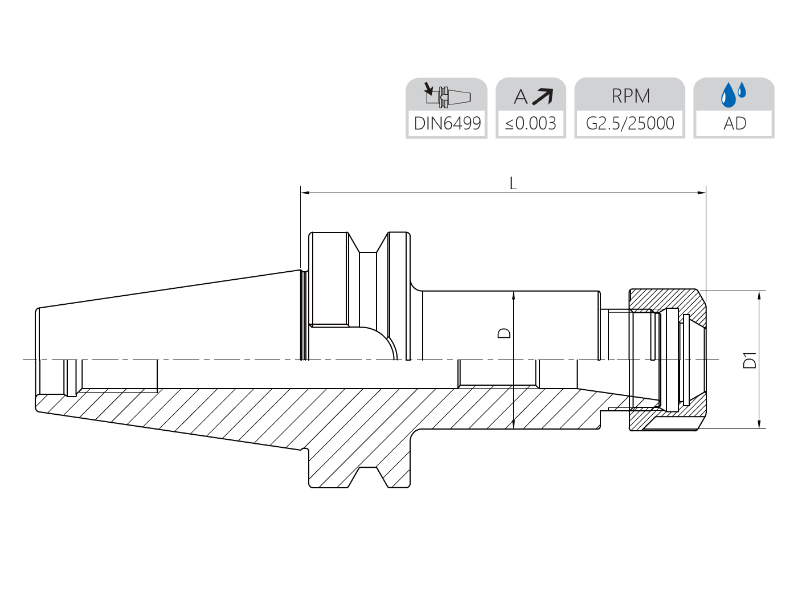

| Size | D | D1 | L | Capacity |
|---|---|---|---|---|
| BT50QER16UMQ70 | 28 | 32 | 70 | 1-10 |
| BT50QER20UMQ70 | 34 | 35 | 70 | 1-13 |
| BT50QER25Q70 | 42 | 42 | 70 | 2-16 |
| BT50QER32Q70 | 40 | 50 | 70 | 2-20 |
| BT50QER40Q80 | 63 | 63 | 80 | 3-26 |
| BT50QER50Q100 | 64 | 78 | 100 | 6-34 |
| BT50QER16UMQ100 | 28 | 32 | 100 | 1-10 |
| BT50QER20UMQ100 | 34 | 35 | 100 | 1-13 |
| BT50QER25Q100 | 42 | 42 | 100 | 2-16 |
| BT50QER32Q100 | 50 | 50 | 100 | 2-20 |
| BT50QER40Q100 | 63 | 63 | 160 | 3-26 |
| BT50QER16UMQ160 | 28 | 32 | 160 | 1-10 |
| BT50QER20UMQ160 | 34 | 35 | 160 | 1-13 |
| BT50QER25Q160 | 42 | 42 | 160 | 2-16 |
| BT50QER32Q160 | 50 | 50 | 160 | 2-20 |
| BT50QER40Q160 | 63 | 63 | 160 | 3-26 |
| BT50QER16UMQ200 | 28 | 32 | 200 | 1-10 |
| BT50QER20UMQ200 | 34 | 35 | 200 | 1-13 |
| BT50QER25Q200 | 42 | 42 | 200 | 2-16 |
| BT50QER32Q200 | 50 | 50 | 200 | 2-20 |
| BT50QER40Q200 | 63 | 63 | 200 | 3-26 |
| BT50QER25Q250 | 42 | 42 | 250 | 2-16 |
| BT50QER32Q250 | 50 | 50 | 250 | 2-20 |
| BT50QER40Q250 | 63 | 63 | 250 | 3-26 |
| BT50QER25Q300 | 42 | 42 | 300 | 2-16 |
| BT50QER32Q300 | 50 | 50 | 300 | 2-20 |
| BT50QER40Q300 | 63 | 63 | 300 | 3-26 |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
