HSKA Tool Holders
HSK63 HSKA ER Collet Tool Holders with UM Nut
Product Introduction
• Centrifugal Clamping Mechanism:The unique hollow-shank structure allows the internal clamping mechanism to increase its gripping force through centrifugal effect during high-speed rotation, ensuring maximum safety at high RPMs.
• Dual-Contact (Face and Taper) Interface:Simultaneous contact with both the spindle taper and face provides exceptional bending rigidity and precise axial positioning, minimizing Z-axis deviations.
• Superior Repeatability:Delivers exceptionally high centering precision after tool changes, ideal for complex processes requiring frequent tool swaps while ensuring consistent workpiece dimensions.
• Designed for ATC (Automatic Tool Change):The Form A specification features standard drive slots and coding holes, perfectly compatible with automatic tool-changing systems across all major CNC machining center brands.
Product Description
Product trial model

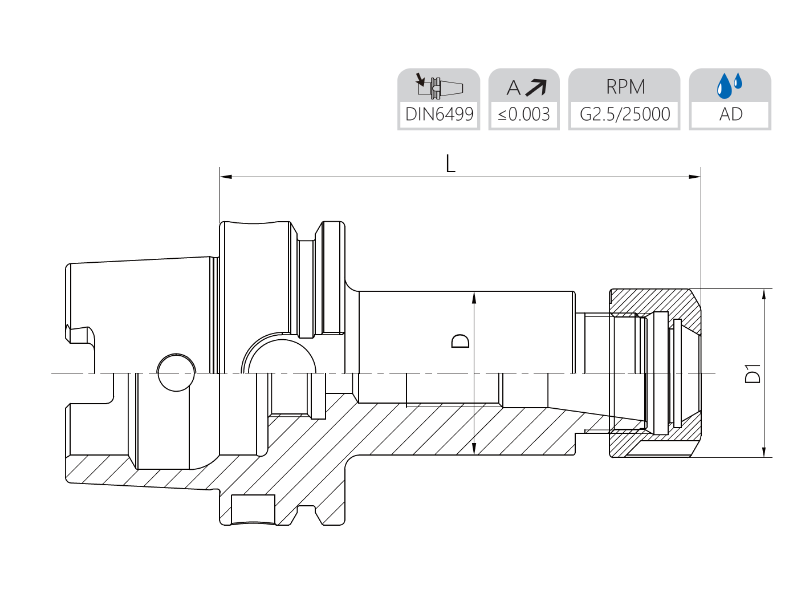

| Size | D | D1 | L1 | Capacity |
|---|---|---|---|---|
| HSK63AQER16UMQ75 | 28 | 32 | 75 | 70 |
| HSK63AQER20UMQ75 | 34 | 35 | 75 | 1-13 |
| HSK63AQER25Q75 | 42 | 42 | 75 | 2-16 |
| HSK63AQER32Q75 | 50 | 50 | 75 | 3-20 |
| HSK63AQER40Q80 | 50 | 63 | 80 | 4-26 |
| HSK63AQER16UMQ100 | 28 | 32 | 100 | 1-10 |
| HSK63AQER20UMQ100 | 34 | 35 | 100 | 1-13 |
| HSK63AQER25Q100 | 42 | 42 | 100 | 2-16 |
| HSK63AQER32Q100 | 50 | 50 | 100 | 3-20 |
| HSK63AQER40Q100 | 50 | 63 | 100 | 4-26 |
| HSK63AQER16UMQ120 | 28 | 32 | 120 | 1-10 |
| HSK63AQER20UMQ120 | 34 | 35 | 120 | 1-13 |
| HSK63AQER25Q120 | 42 | 42 | 120 | 2-16 |
| HSK63AQER32Q120 | 50 | 50 | 120 | 3-20 |
| HSK63AQER40Q120 | 50 | 63 | 120 | 4-26 |
| HSK63AQER16UMQ160T | 28 | 32 | 160 | 1-10 |
| HSK63AQER20UMQ160 | 34 | 35 | 160 | 1-13 |
| HSK63AQER25Q160 | 42 | 42 | 160 | 2-16 |
| HSK63AQER32Q160 | 50 | 50 | 160 | 3-20 |
| HSK63AQER40Q160 | 50 | 63 | 160 | 4-26 |
| HSK63AQER16UMQ200T | 28 | 32 | 200 | 1-10 |
| HSK63AQER20UMQ200 | 34 | 35 | 200 | 1-13 |
| HSK63AQER25Q200 | 42 | 42 | 200 | 2-16 |
| HSK63AQER32Q200 | 50 | 50 | 200 | 3-20 |
| HSK63AQER40Q200 | 50 | 63 | 200 | 4-26 |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
