HSK100AQER25Q66

Product Introduction

• Expanding Multi-Axis Capabilities
Engineered for superior efficiency, Angle Heads expand the capabilities of 3-axis machines to multi-axis processing by redirecting the spindle output.

• Process Integration via Single Clamping
Complete lateral and multi-angle tasks—milling, drilling, and tapping—without re-clamping. This maximizes accuracy and minimizes potential setup errors.

• Significant Reduction in Cycle Times
Minimize cycle times and improve machine utilization by eliminating redundant workpiece handling while ensuring consistent processing quality across all stages.

• Exceptional Rigidity with Short-Reach Design

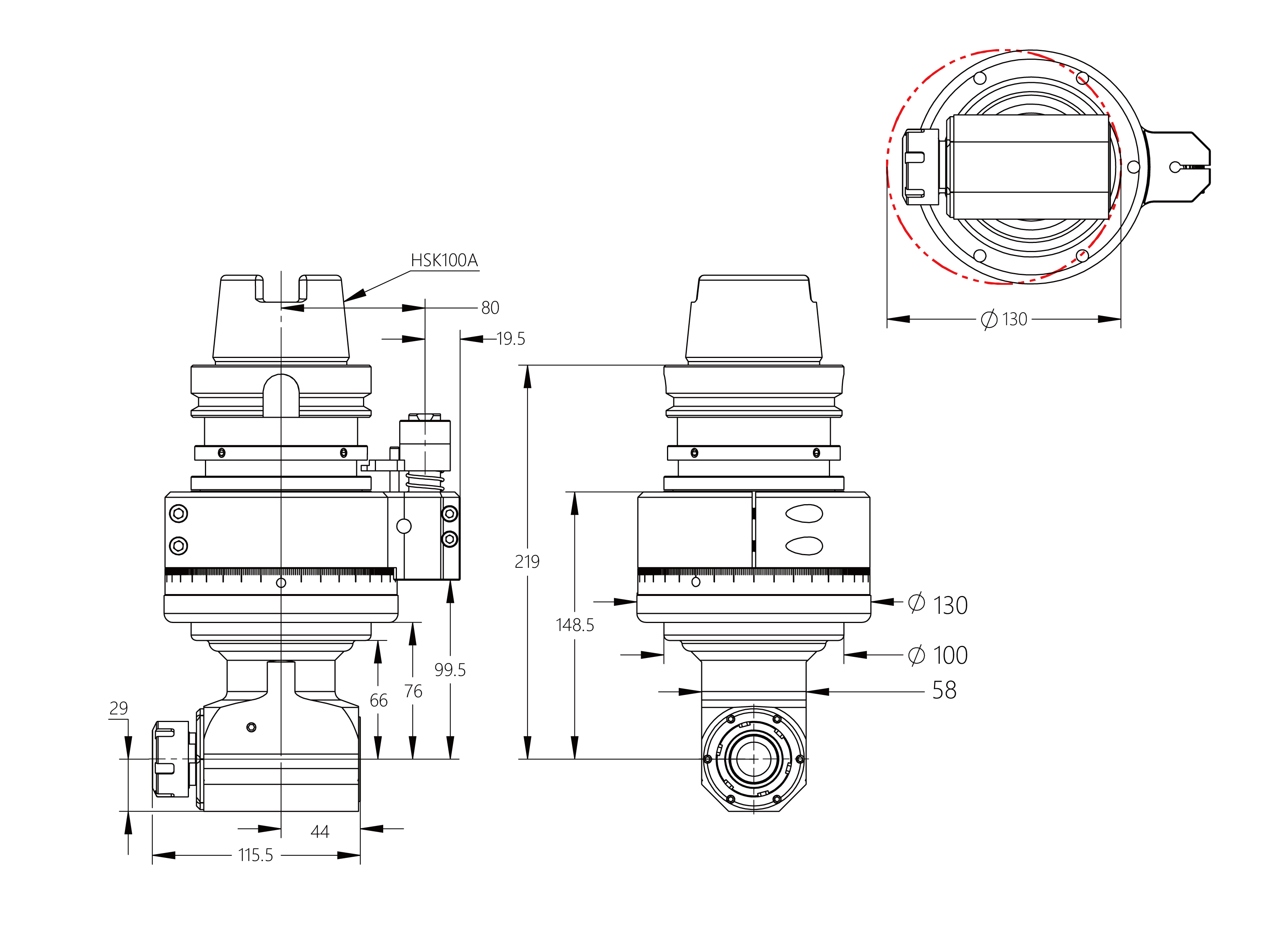

The Q66 (66mm) short-reach design significantly suppresses vibration. Combined with the robust clamping force of HSK100A and precision-ground gears, it ensures stability during heavy lateral cutting.

• ATC (Automatic Tool Changer) Compatibility
Fully compliant with HSKA (Form A) standards for seamless integration with ATC systems, supporting automated tool changes and high-efficiency unmanned operations.
