HSK100

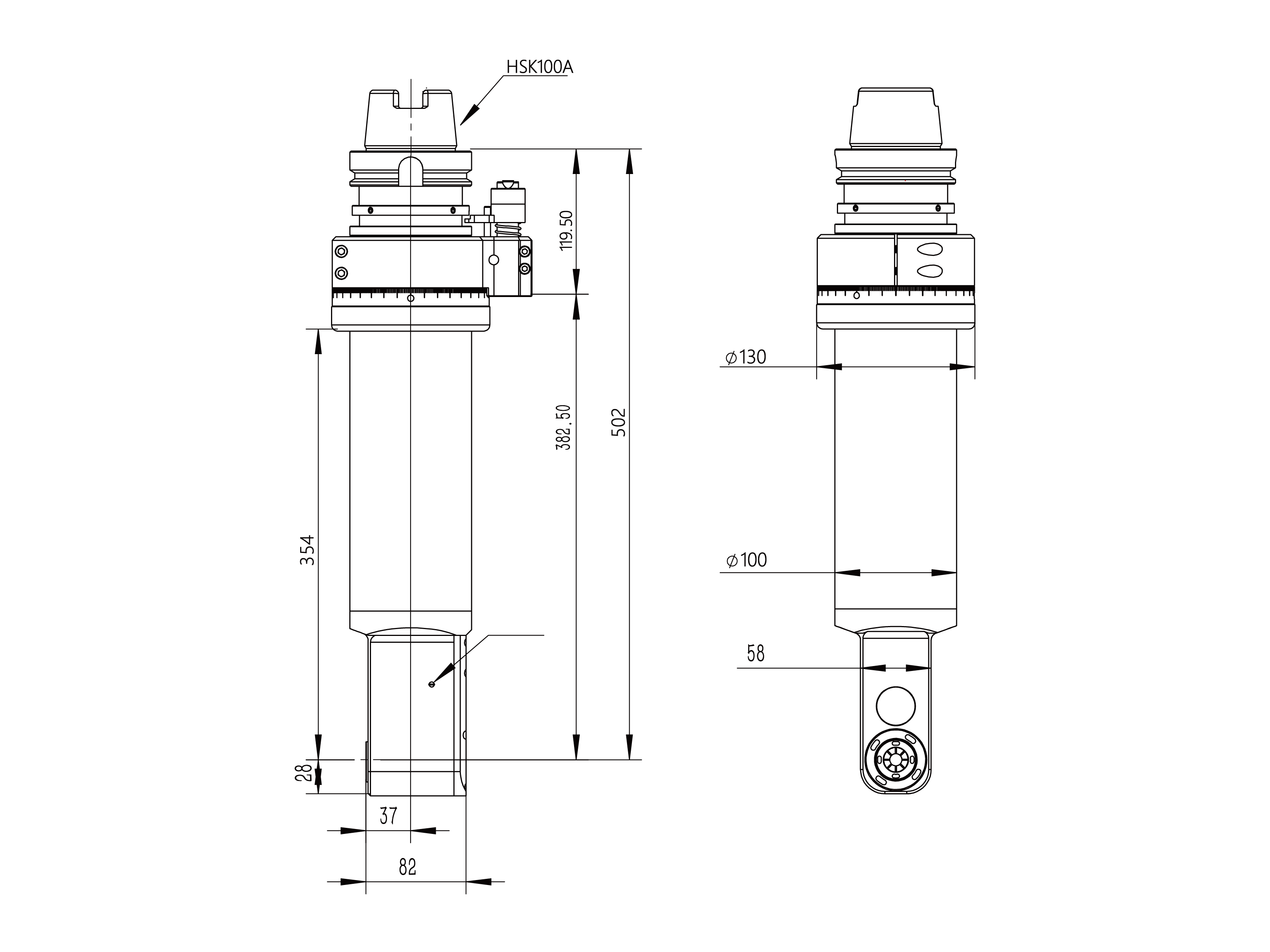

HSK100AQER25MQ350
Product Introduction
Engineered for superior efficiency, Angle Heads expand the capabilities of 3-axis machines to multi-axis processing. By redirecting the spindle output, operators can complete lateral and multi-angle tasks—milling, drilling, and tapping—without re-clamping. This maximizes accuracy and minimizes cycle times.
Product Description
Product trial model
| Model | Driving Shank | More Shank | Max. RPM | Output Rotation | Ratio of Transmission | Minimum Diameter | Chucking Range | Tapping | Torque | WT | Custom |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK100AQER25MQ350 | HSK100A | Can Be Used | 4500 RPM | CW-CW | 1：1 | 49mm | D1-D16 | M4-M14 | 46Nm | 12.344 kg | Customization |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
