SK Push-Forward Collet Chuck – Zero Axial Movement Type
Product Introduction
• Dual-Mode Operation (Positioning & Through-Hole)
• Positioning Mode: Installing the positioning block provides an axial dead stop, ensuring consistent workpiece length and absolute repeatability.
• Through-Hole Mode: Once the positioning block is removed, it converts into a through-hole type, perfectly suited for long bar stock processing.
• Push-Forward Parallel Clamping: Featuring segmented parallel contraction technology, it provides more uniform force distribution than traditional taper clamping. This enhances clamping rigidity while protecting the workpiece surface from marking.
• Enhanced Body Construction: Through carburizing quenching and cryogenic treatment, the body reaches a hardness of HRC 58-62, demonstrating extreme wear resistance and dimensional stability.
• Waterproof & Chip-proof: Utilizes a specialized rubber vulcanization process to effectively block cutting fluid and iron chips from entering the internal mechanism, significantly extending the service life.
• Seamless Automation Integration: Supports airtight detection to ensure precise displacement monitoring during automated loading/unloading. It can also be equipped with center-through coolant to optimize heat dissipation and chip evacuation for deep-hole machining.
Product Description
Product trial model

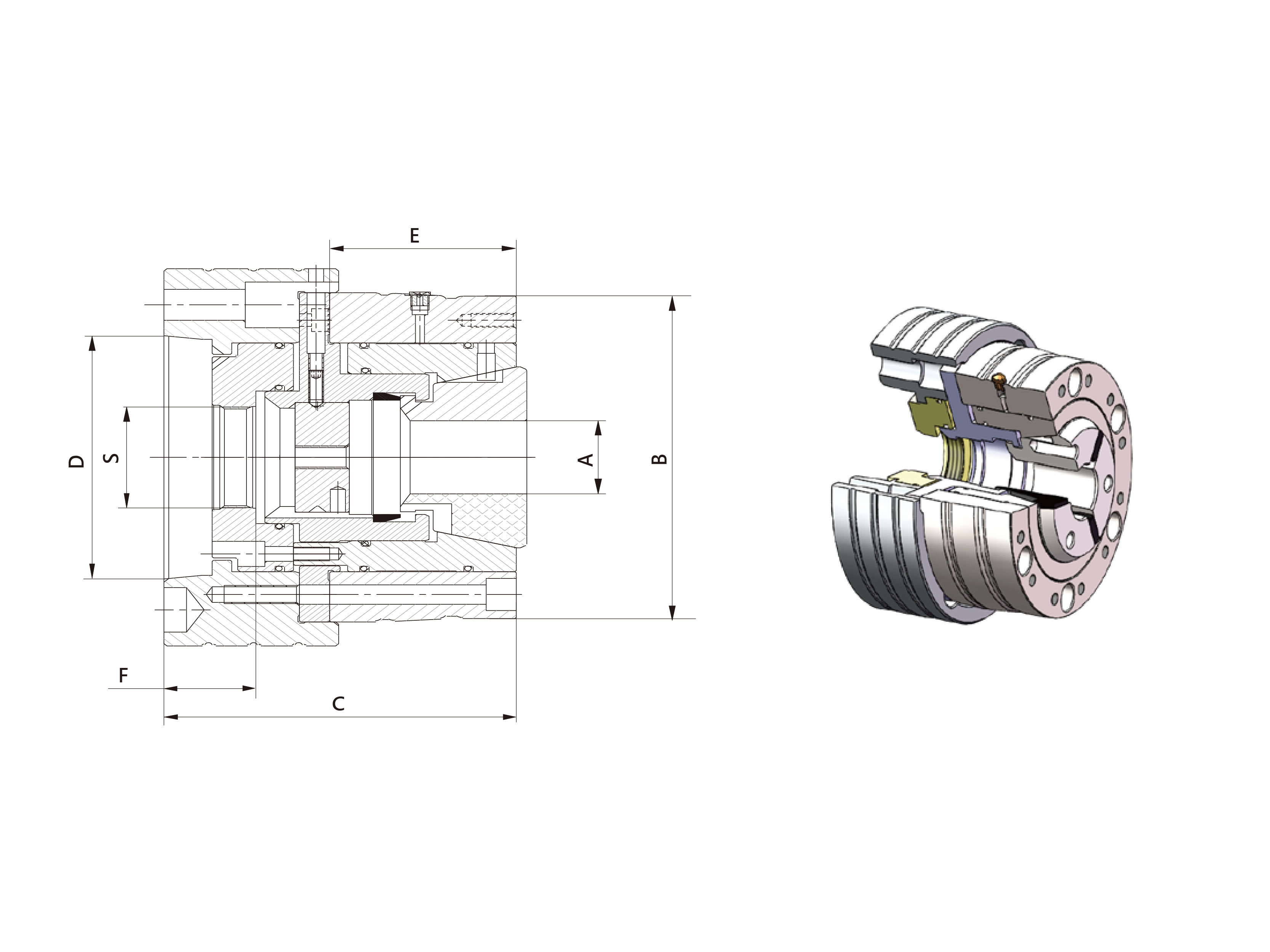

| Specifications and models | Clamping range(mm) | CLamp force(KN) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | S (mm) | MAX RPM |
|---|---|---|---|---|---|---|---|---|---|
| SK32(W) | 5-32 | 70 | 106 | 114 | Connecting different flanges | 49 | 43.5 | M60*2.0 | 7000 |
| SK42(W) | 5-42 | 80 | 125 | 117 | Connecting different flanges | 49 | 51.5 | M60*2.0 | 6000 |
| SK52(W) | 5-52 | 94 | 134 | 118 | Connecting different flanges | 53 | 50.5 | M60*2.0 | 6000 |
| SK65(W) | 5-65 | 105 | 145 | 124 | Connecting different flanges | 56 | 53.5 | M75*2.0 | 6000 |
| SK80(W) | 5-80 | 115 | 164 | 130 | Connecting different flanges | 58 | 54.5 | M75*2.0 | 5000 |
| SK100(W) | 16-100 | 150 | 190 | 132 | Connecting different flanges | 58 | 56.5 | M80*2.0 | 4500 |
| SK120(W) | 40-120 | 160 | 250 | 171 | Connecting different flanges | 64 | 47.5 | M80*2.0 | 4000 |
| SK160(W) | 45-160 | 150 | 285 | 185 | Connecting different flanges | 94.5 | 46.0 | M85*2.0 | 4000 |
For customized designs or additional specification options, please contact us. Our team will provide the most suitable solution for your application.
